6.4 Intro to Data Science: Dynamic Visualizations

• In this section, we make things “come alive” with dynamic visualizations.

The Law of Large Numbers

• For a six-sided die, each value 1 through 6 should occur one-sixth of the time, so the probability of any one of these values occurring is 1/6th or about 16.667%.
• In the dynamic visualization, the more rolls we perform, the closer each die value’s percentage of the total rolls gets to 16.667% and the heights of the bars gradually become about the same.
• This is a manifestation of the law of large numbers.

6.4.1 How Dynamic Visualization Works

• The Matplotlib animation module’s FuncAnimation function, updates a visualization dynamically.

Animation Frames

• FuncAnimation drives a frame-by-frame animation.
• Each animation frame specifies what to change during one plot update.
• Stringing together many updates over time creates an animation.
• This example displays an animation frame every 33 milliseconds—yielding approximately 30 (1000 / 33) frames-per-second.

Running RollDieDynamic.py

1. Access the command line in Jupyter with File > New > Terminal.
2. cd ch06.
3. Execute

ipython RollDieDynamic.py 6000 1

• 6000 is the number of animation frames to display.
• 1 is the number of die rolls to summarize in each animation frame.

• To see the law of large numbers in action, increase the execution speed by rolling the die more times per animation frame:

  ipython RollDieDynamic.py 10000 600


• In this case, FuncAnimation perform 10,000 updates, with 600 rolls-per-frame for a total of 6,000,000 rolls.

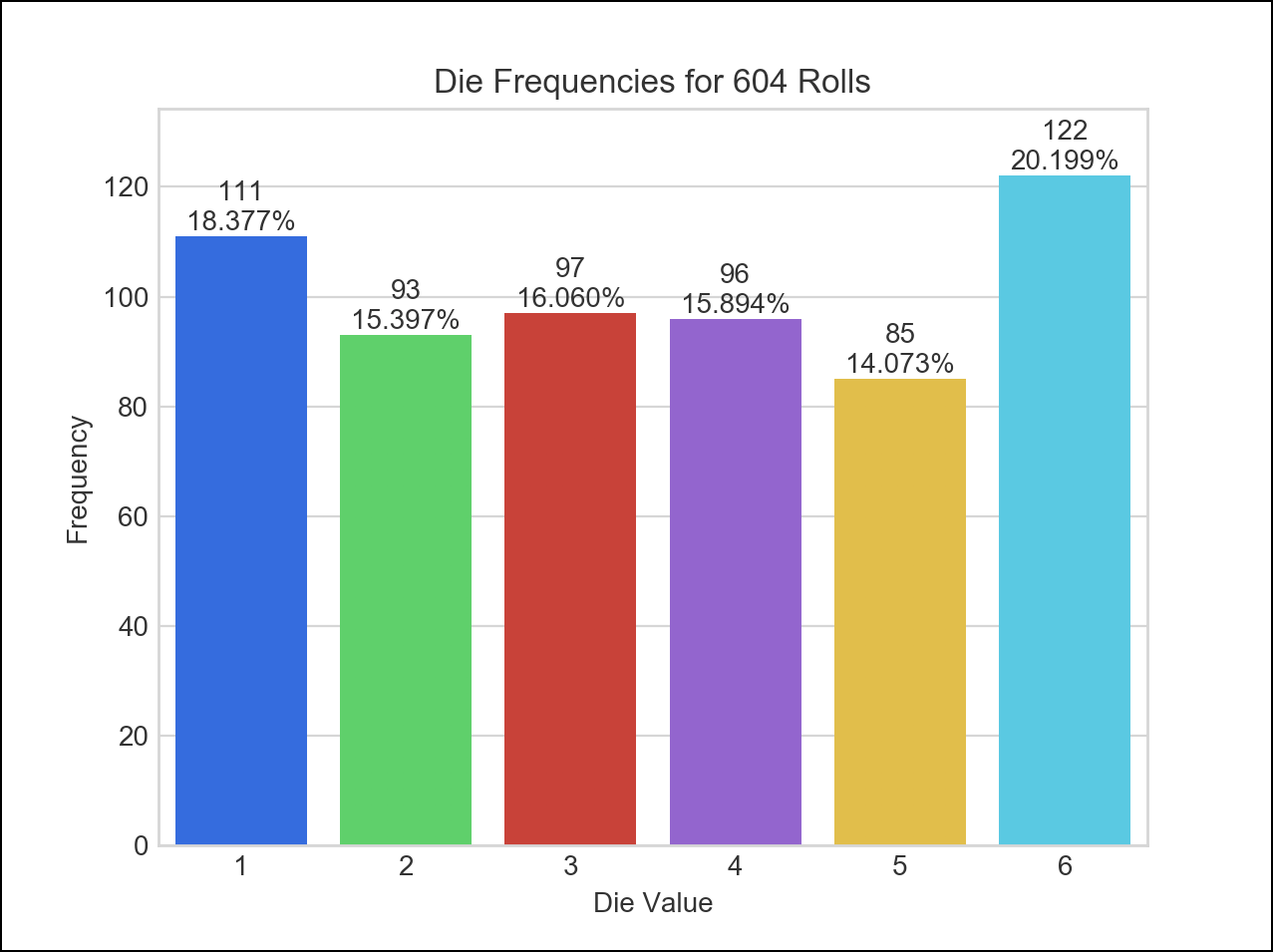

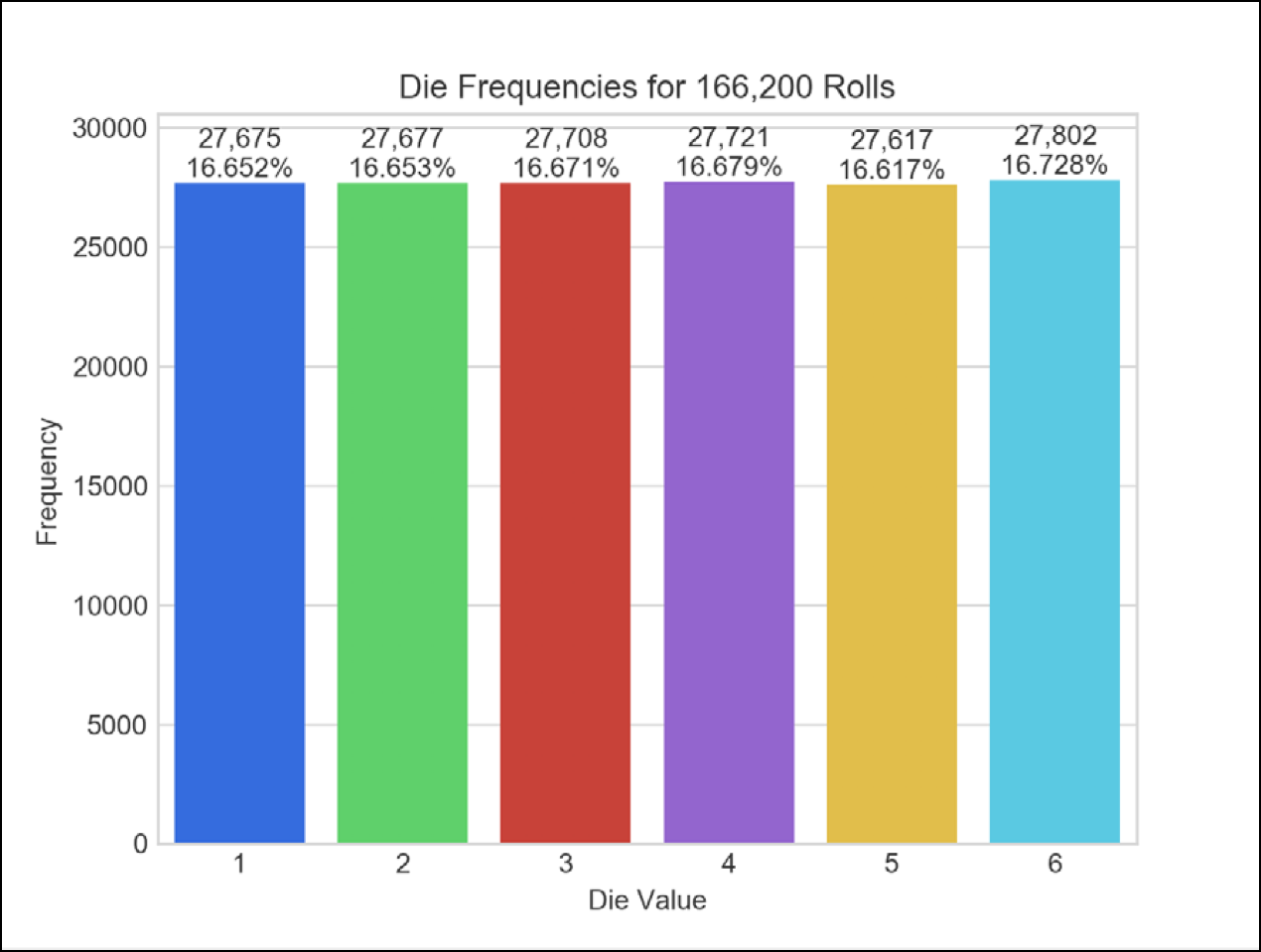

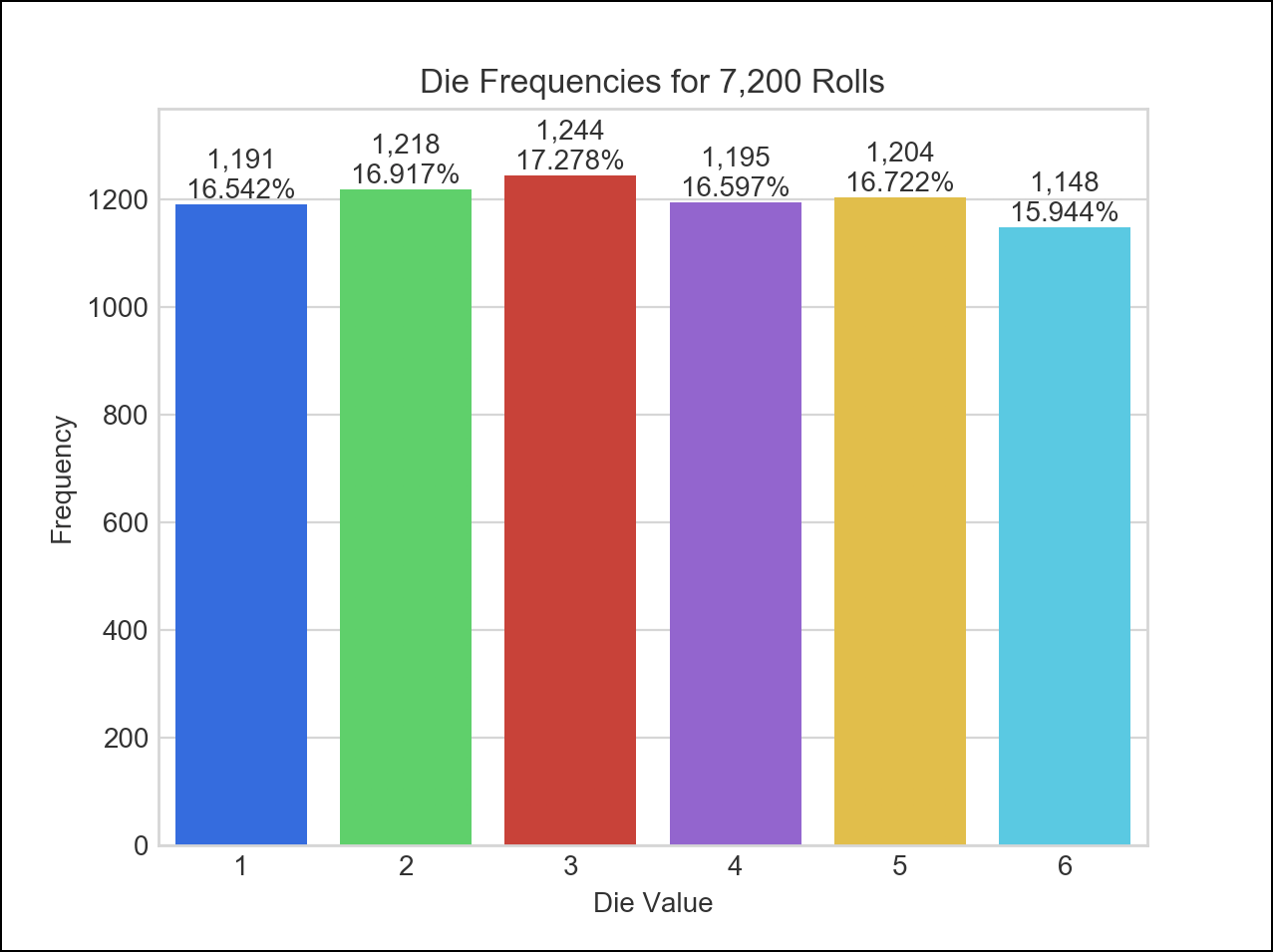

Sample Executions

6.4.2 Implementing a Dynamic Visualization

Importing the Matplotlib animation Module

• We focus primarily on the new features used in this example.
• We import the Matplotlib animation module to access `FuncAnimation.

# RollDieDynamic.py
"""Dynamically graphing frequencies of die rolls."""
from matplotlib import animation
import matplotlib.pyplot as plt
import random
import seaborn as sns
import sys

Function update

def update(frame_number, rolls, faces, frequencies):
    """Configures bar plot contents for each animation frame."""

• FuncAnimation calls the update function once per animation frame.
• This function must receive at least one argument.
• Parameters:
  • frame_number—The next value from FuncAnimation’s frames argument, which we’ll discuss momentarily. Though FuncAnimation requires the update function to have this parameter, we do not use it in this update function.
  • rolls—The number of die rolls per animation frame.
  • faces—The die face values used as labels along the graph’s x-axis.
  • frequencies—The list in which we summarize the die frequencies.

We discuss the rest of the function’s body below.

Function update: Rolling the Die and Updating the frequencies List

• Roll the die rolls times and increment the appropriate frequencies element for each roll.

# roll die and update frequencies
    for i in range(rolls):
        frequencies[random.randrange(1, 7) - 1] += 1

Function update: Configuring the Bar Plot and Text

• The matplotlib.pyplot module’s cla (clear axes) function removes the existing bar plot elements before drawing new ones for the current animation frame.
• We discussed the other code below in the previous chapter’s Intro to Data Science section.

# reconfigure plot for updated die frequencies
    plt.cla()  # clear old contents contents of current Figure
    axes = sns.barplot(faces, frequencies, palette='bright')  # new bars
    axes.set_title(f'Die Frequencies for {sum(frequencies):,} Rolls')
    axes.set(xlabel='Die Value', ylabel='Frequency')
    axes.set_ylim(top=max(frequencies) * 1.10)  # scale y-axis by 10%

    # display frequency & percentage above each patch (bar)
    for bar, frequency in zip(axes.patches, frequencies):
        text_x = bar.get_x() + bar.get_width() / 2.0
        text_y = bar.get_height()
        text = f'{frequency:,}\n{frequency / sum(frequencies):.3%}'
        axes.text(text_x, text_y, text, ha='center', va='bottom')

Variables Used to Configure the Graph and Maintain State

• The sys module’s argv list contains the script’s command-line arguments.
• The matplotlib.pyplot module’s figure function gets a Figure object in which FuncAnimation displays the animation — one of FuncAnimation’s required arguments.

# read command-line arguments for number of frames and rolls per frame
number_of_frames = int(sys.argv[1])
rolls_per_frame = int(sys.argv[2])

sns.set_style('whitegrid')  # white background with gray grid lines
figure = plt.figure('Rolling a Six-Sided Die')  # Figure for animation
values = list(range(1, 7))  # die faces for display on x-axis
frequencies = [0] * 6  # six-element list of die frequencies

Calling the animation Module’s FuncAnimation Function

• FuncAnimation returns an object representing the animation.
• Though this is not used explicitly, you must store the reference to the animation; otherwise, Python immediately terminates the animation and returns its memory to the system.

# configure and start animation that calls function update
die_animation = animation.FuncAnimation(
    figure, update, repeat=False, frames=number_of_frames, interval=33,
    fargs=(rolls_per_frame, values, frequencies))

plt.show()  # display window

FuncAnimation has two required arguments:

• figure—the Figure object in which to display the animation, and

• update—the function to call once per animation frame.

• Optional keyword arguments:

  • repeat—If True (the default), when the animation completes it restarts from the beginning.
  • frames—The total number of animation frames, which controls how many times FunctAnimation calls update.
  • interval—The number of milliseconds between animation frames (the default is 200).
  • fargs (short for “function arguments”)—A tuple of other arguments to pass to the function you specified in FuncAnimation’s second argument.
• FuncAnimation’s other optional arguments

---
